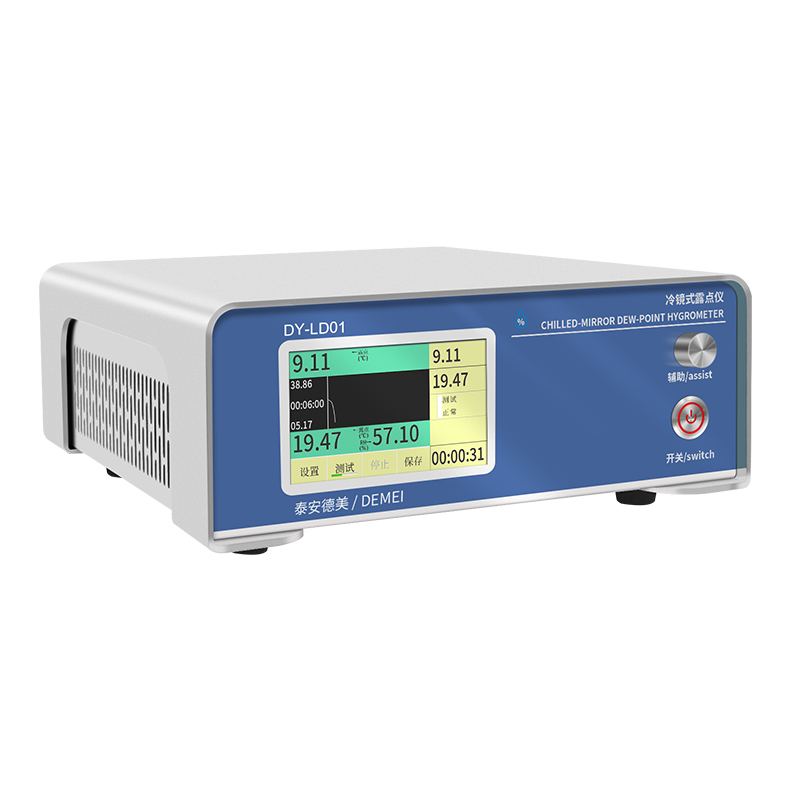

DY-LD01 type cold mirror dew point meter (input type) -20℃ ~ +95℃ for dew point temperature, ambient temperature and relative humidity test precision instrument.
The product adopts cold mirror type principle, touch screen control system, automatic continuous analysis.
The dew point meter has the advantages of high precision, wide range, good stability and no drift. It is widely used in the measurement of temperature and humidity.
Product advantage
√ Range width: -20℃ ~ +95℃
√ High accuracy: ±0.2℃ (optional ±0.1℃)
√ High resolution: 0.01℃
√ Real-time display of the whole curve
√ Touch screen operation, Chinese and English double interface, easy to operate
√ Automatic balance system, short measurement time
√ Mirror pollution self-detection function, manual cleaning of the mirror
√ Data storage, query and print functions
√ Long-term stability, good repeatability, can be done online analysis
√ User can do single or multi-point calibration
[Technical indicators]
√ Range: -20℃ ~ +95℃ (optional)
√ Accuracy: ±0.2℃ (optional ±0.1℃)
√ Dew Point Temperature Sensor: Accuracy ±0.2℃ (optional ±0.1℃); Resolution: 0.01℃
√ Temperature Sensor: -40℃ ~ +60℃; Accuracy of plus or minus 0.1 ℃; Resolution: 0.01℃
√ Repeatability: ≤±0.05℃
√ Refrigeration mode: two stage semiconductor perpatch refrigeration
